Description

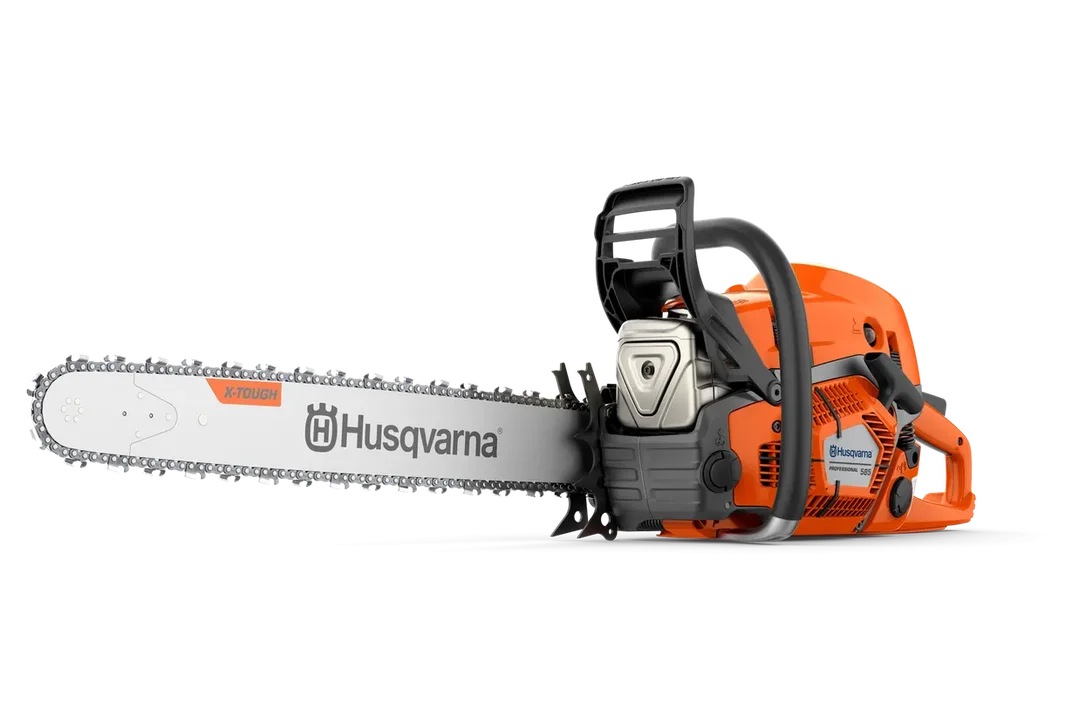

Professional 86cc chainsaw for heavy-duty forestry in tough conditions
Experience the robustness of our new 90cc petrol chainsaw range! Husqvarna 585 is developed for forestry and tree care workers looking for a robust and durable chainsaw that’s easy to maneuver and maintain even in tough conditions. This chainsaw combines proven technology with modern design and performance. The powerful X-Torq engine combined with the X-Cut C85/C83 chains delivers excellent cutting capacity. Equipped with X-Tough™ bar, available from 20” to 36”.
| Engine | 32″ – RSN – 3/8″ – C85SKU: 970 49 30‑32 | 24″ – RSN – 3/8″ – C85SKU: 970 49 30‑24 | 28″ – RSN – 3/8″ – C85SKU: 970 49 30‑28 | 20″ – RSN – 3/8″ – C85SKU: 970 49 30‑30 | 20″ – RSN – 3/8″ – C83SKU: 970 49 30‑70 | 24″ – RSN – 3/8″ – C83SKU: 970 49 30‑74 | 28″ – RSN – 3/8″ – C83SKU: 970 49 30‑78 | 32″ – RSN – 3/8″ – C83SKU: 970 49 30‑82 | 28″ – RSN – 3/8″ – H83SKU: 970 49 30‑88 | 32″ – RSN – 3/8″ – H83SKU: 970 49 30‑92 | 36″ – RSN – 3/8″ – H83SKU: 970 49 30‑96 |
| Chain speed at max power | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts | 75.5 fts |
| Cylinder displacement | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ | 86 cm³ |
| Output shaft power1 | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp | 6.9 hp |
| Torque, max. | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm | 5.3 Nm |
| Torque, max. at rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm | 7,800 rpm |
| Clutch engagement speed (±120) | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm |
| Electrode gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in |
| Idling speed | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm |
| Ignition module air gap | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in |
| Maximum power speed | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm |
| Oil pump type | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle |
| Spark Plug | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H |
| Equipment | |||||||||||
| Recommended bar length, min | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in |
| Pitch | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ |
| Recommended bar length, max | 36 in | 36 in | 36 in | 36 in | 36 in | 36 in | 36 in | 36 in | 36 in | 36 in | 36 in |
| Chain type | C85 | C85 | C85 | C85 | C83 | C83 | C83 | C83 | H83 | H83 | H83 |
| Bar length | 81 cm | 60 cm | 70 cm | 50 cm | 50 cm | 60 cm | 70 cm | 81 cm | 70 cm | 81 cm | 90 cm |
| Bar length (inch) | 32 in | 24 in | 28 in | 20 in | 20 in | 24 in | 28 in | 32 in | 28 in | 32 in | 36 in |
| Sprocket type | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 |
| Gauge | .058″ | .058″ | .058″ | .058″ | |||||||
| Dimensions | |||||||||||
| Weight (excl. cutting equipment) | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs | 16.5 lbs |
| Sound and noise | |||||||||||
| Sound pressure level at operators ear | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) |
| Sound power level, guaranteed (LWA) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) |
| Sound power level, measured | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) |
| Vibration | |||||||||||
| Equivalent vibration level (ahv, eq) rear handle | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² | 5.9 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² |
| Lubricant | |||||||||||
| Oil tank volume | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint | 0.89 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
| Emission | |||||||||||
| Exhaust emissions (CO₂ EU V)2 | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh | 792 g/kWh |
