Description
WARRANTY
- 3 Year Limited (No hour limit)
- 3 Year Limited Engine
|
REDEFINE YOUR MOWING EXPERIENCE

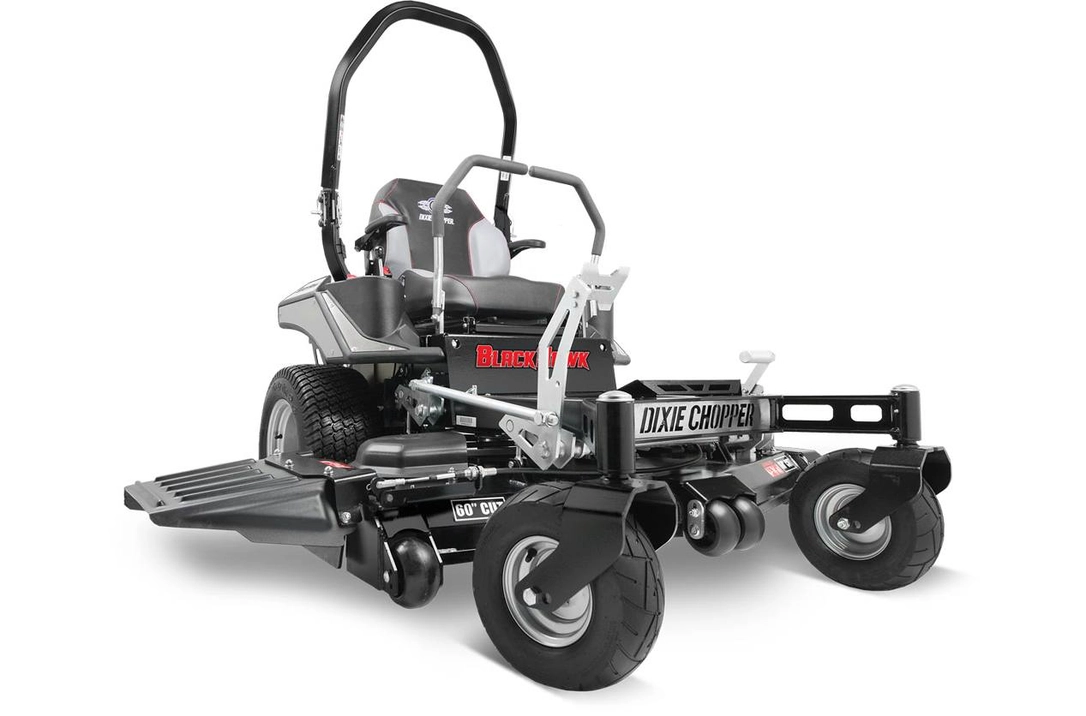

The Dixie Chopper BlackHawk lawn mower provides the ultimate mowing experience with superior value, advanced operator controls, commercial grade components, and unmatched performance.
- OCDC – Foot-operated to keep your hands on the steering levers.
- Parker HTE – Smooth steering and 1000 hour oil change intervals.
- Peer Spindles – Maintenance free with Contamination Exclusion Technology.
- 48″, 54″ and 60″ Decks – Deep 7 gauge shell to tackle deep grass with ease
- Proven Power – Equipped with an industry preferred 24 horsepower Kawasaki® FS engine for trusted and reliable performance.
- Total Comfort – The high-back, padded, and over-sized bolstered seat hugs your torso for ultimate comfort.
Dixie Chopper Accessory Compatibility Chart
|
Dixie Chopper BlackHawk Accessories
|
| Striping Kit |
902985 |
| Mulch Kit 48″ |
4385107 |
| Twist Blade 48″ |
30227-50T |
| “N” (3″ Wide) Blade 48″ |
30227-50N |
| Eliminator Blade 48″ |
30227-50E |
| Discharge Enhancement Kit 48″ |
903467 |
| PECO Pro 2B+ Bagger |
38120905 |
| Black Hard-Top Sunshade |
4421380 |
| White Hard-Top Sunshade |
4421381 |
| Electric Deck Lift |
4366006 |
| Springer Forks (set) |
4369086 |
| Run-Flat M/C Tire (Assembly) |
402065 |
| Run-Flat Rib Tire (Assembly) |
402091 |
| Light Kit |
4382367 |
| Suspension Seat |
4368966 |
| Hitch Kit |
4369190 |
| Deck Bumper Kit |
671082 |
| Parker HTE & HTJ Oil Change Kit |
903458 |
___________________________________________
Specifications:
Engine
|
| Manufacturer |
Kawasaki FS |
| Horsepower |
24 hp |
| Displacement |
726cc |
| Air-cleaner |
2-stage |
| Cooling |
Air-cooled |
| Starter |
Electric |
| Engine warranty |
3-Year |
Drive System
|
| Dual hydrostatic |
Parker® HTE |
| Ground speed |
9 mph |
| Parking brake |
Integrated in transaxle |
| Towing capacity |
200 lbs |
Mower Deck
|
| Deck Size |
48″ |
| Acres/hour |
3.4 |
| Cutting height |
1″-5″ |
| OCDC (operator controlled discharge chute) |
Foot-operated (standard) |
| Deck height adjustments |
Manual lift, 1/4″ increments |
| Electric Lift |
Optional |
| Deck engagement |
Ogura® 150 ft-lbs |
| Construction |
7 ga formed & welded, Abrasion Resistance Baffles |
| Blades |
(3) -2.5″ x 17.25″ |
| Blade Tip Speed |
18,500 fpm |
| Spindles |
1.25″ effective diameter machined shaft |
| Spindle Housings |
Peer® Turf Xtreme™ ductile iron (sealed) |
| Anti-scalp rollers |
4 |
| Pulleys |
7 ga steel deep groove |
General
|
| Battery |
12 Volt, 350cca |
| Digital display |
Tachometer, hour meter, fuel gauge |
| Fuel capacity |
7 gallons |
| Rear tires |
23 x 10.5-12 GrassMaster |
| Front tires |
13 x 6.5-6 |
| Frame |
Welded C-channel, 7 ga formed |
| Fenders |
Stainless steel |
| Floor-pan |
Removable, steel |
| Seat |
24″ high-back adjustable padded seat w/ armrests |
| Springer Forks |
Optional |
Dimensions
|
| Overall height (rollbar down) |
50″ |
| Overall height (rollbar up) |
71″ |
| Overall width (chute down) |
63.6″ |
| Overall width (chute up) |
49.2″ |
| Overall length (rollbar down) |
85.8″ |
| Overall length (rollbar up) |
81.3″ |
| Weight |
1104 lbs |
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
