Description
WARRANTY
- 3 Year Limited (No hour limit)
- 3 Year Limited Engine
|
The Toughest Mower in the Industry.

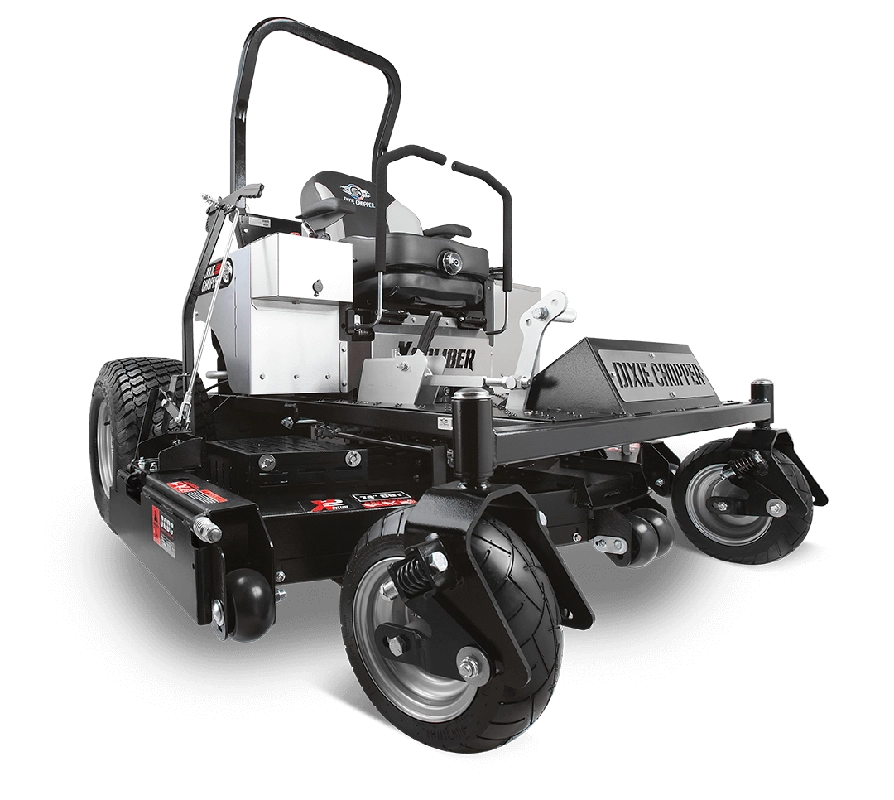

Professional commercial contractors and large property landowners across the U.S. have come to depend on the XCaliber industrial zero-turn mower for its legendary performance. This 74-inch Dixie Chopper flagship features:
- Total Comfort – High-back suspension seat with recline, lumbar, and padded armrests.
- Turbinator Pre-Cleaner – Exclusive feature removes debris for cleaner air through the engine.
- Pump & Wheel Motors – Stronger transmissions for extended system life.
- Heavy-Duty Spindles & Cooling Fans – Fans help keep spindles and belts cool while cleaning the top side of the deck.
- X2 “Wind Tunnel” Deck – Increases airflow and reduces build-up inside the deck. *optional Twist blade shown
- Pure Power – Equipped with an industry-preferred 35 horsepower Kawasaki® FX engine or a 40 horsepower Vanguard Big Block EFI for greater fuel efficiency.
Dixie Chopper Accessory Compatibility Chart
|
Dixie Chopper Classic Accessories
|
| Striping Kit (Chains) |
98024 |
| Mulch Kit 74″ |
903019 |
| Magic Mulcher (Whiz Mow) |
30302 |
| Twist Blade 74″ |
30227-74T |
| Eliminator Blade 74″ |
30227-74E |
| Electric Deck Lift |
902995 |
| Light Kit |
900366 |
| Turf Boss Tire Assembly 25 x 12-12 LH |
401205 |
| Turf Boss Tire Assembly 25 x 12-12 RH |
401206 |
| M/C Tire (Assembly) |
400439 |
| Run-Flat Rib Tire (Assembly) |
401421 |
| Black Soft-Top Sunshade |
902748 |
| White Soft-Top Sunshade |
902747 |
| Black Hard-Top Sunshade |
4421380 |
| White Hard-Top Sunshade |
4421381 |
| Peco Pro 12 DFS Bagger (Dump From Seat with Aux Motor) |
38621245 |
___________________________________________
Specifications:
Engine
|
| Manufacturer |
Kawasaki® FX |
| Horsepower |
35 |
| Displacement |
999cc |
| Air-cleaner |
4 stage & Turbinator® Pre-Cleaner |
| Cooling |
Air-cooled |
| Starter |
Electric |
| Engine warranty |
3-Year |
Drive System
|
| Pumps |
Hydro-Gear® 21cc |
| Wheel motors |
Parker® DG335 |
| Ground speed |
13 mph |
| Parking brake |
Automotive-Style |
| Towing capacity |
2,000 lbs |
Mower Deck
|
| Deck Size |
74″ |
| Acres/hour |
7.8 |
| Cutting height |
1.25″ – 5″ |
| OCDC (operator-controlled discharge chute) |
Standard |
| Deck height adjustments |
Manual lift, 1/4″ increments |
| Electric Lift |
Optional |
| Deck engagement |
Ogura® 250 ft-lbs |
| Construction |
7 ga formed & welded |
| Top Plate |
7 ga bolted (not welded) |
| Blades |
3 – 26″ x 2.5″ |
| Blade Tip Speed |
18,000 fpm |
| Spindles |
1.25″ effective diameter machined shaft |
| Spindle Housings |
Peer® Turf Xtreme™ ductile iron (sealed) |
| Anti-scalp Rollers |
6 |
| Spindle Cooling Fans |
Standard (3) |
| Pulleys |
Vented split 3/16″ steel deep groove |
General
|
| Battery |
12 Volt, 350cca |
| Digital display |
Tachometer, hour meter, voltmeter, service alerts |
| Fuel capacity |
12 gallons |
| Rear tires |
25 x 12-12 GrassMaster |
| Front tires |
15 x 6-8 (run-flat) |
| Frame |
Welded 1″ x 2″ tube, 7 ga formed |
| Fenders |
Stainless steel |
| Floor-pan |
Removable, steel |
| Seat |
High-back, full suspension, lumbar, recline, and padded armrests |
| Springer Forks |
Standard |
Dimensions
|
| Overall height |
53″ |
| Overall height (rollbar up) |
77.5″ |
| Overall width |
76″ |
| Overall length |
86″ |
| Overall length (rollbar down) |
89.5″ |
| Weight |
1482 lbs |
If you have any questions about this 74-inch Dixie Chopper XCaliper industrial zero-turn mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
