Description
Warranty
- 4 years or 1000 hours
- 3 Year Limited Engine
|
Literature
- FasTrak SDX Owners Manual
- FasTrak SDX General Service Manual
- FasTrak SDX 54″ Parts Manual
- Hustler Turf Catalog
|
COMMERCIAL-GRADE POWER & PERFORMANCE

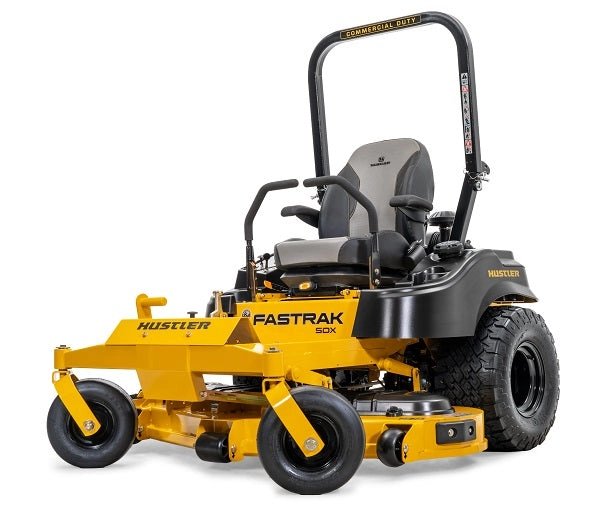

The Hustler FasTrak® SDX 54″ offers commercial-grade power and performance at an unbeatable value. The heavy-duty and over-engineered construction of the deck, frame and front end makes this zero-turn the most durable in its class.
- Fabricated Frame for Durability: 1.5” x 3.0” steel frame making it one of the toughest and most durable in its class.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Easy Serviceability: Flip-up seat pan, removable floor pan and tool less removable pulley covers make maintenance easy and simple.
- Foot Operated Deck Lift: Easily adjust the deck height between 1.5” -4.5” with your foot.
- Welded Steel Deck: Durable 10 ga. welded fabricated steel.
- BigBite™ Tires: Enhanced traction while designed not to tear up turf. Hustler worked directly with the tire manufacturer on this product.
- Full Suspension Seat: Features an extra high back, an industrial tubular frame, and armrests. Additional bolstering for better side-to-side support, and internal suspension to absorb bumps. Engineered cushions add extra support and protection to relieve pressure on your spine and lower back.
- Serviceable Commercial-Grade Transmissions: Built with Hydro-Gear’s commercial-grade serviceable transmissions.
- Remote Cannister Air Cleaner: Keep your engine cooler and healthier with the protection a commercial mower needs to operate at peak efficiency.
Hustler Turf Accessory Compatibility Chart
|
Hustler FasTrak SDX Accessories
|
| 2 Bag Powered Catcher (no adapter needed) |
942367 |
| Bac-Vac Catcher (no adapter needed) |
942375 |
| Side Steel Catcher 3.5 Bushel (no adapter needed) |
606045 |
| Side Mesh Catcher 3 Bushel (no adapter needed) |
939678 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
GCGR34Z |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
GCGR34ZXL |
| Mulching Kit 54″ |
121475 |
| Flex Forks |
605123 |
| Light Kit |
127928 |
| High Vacuum Kit 54″ |
121479 |
| Steering Lever Extension Kit |
122760 |
| Stripe Kit |
126828 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Kawasaki FX691 |
| Engine Horsepower |
22 |
| Displacement |
726cc |
| Cooling |
Air Cooled |
| Engine Warranty |
3 year |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Hydro-Gear ZT-3400™ |
| Fuel Capacity |
8.5 gal. |
| Ground Speed (Fwd) |
Up to 10 mph |
| Parking Brake |
Integrated with steering levers |
Deck
|
| Cutting Width |
54″ |
| Cutting Height |
1.5″ to 4.5″ |
| Deck Depth |
5″ |
| Deck Lift |
Foot Operated |
| Number of Blades |
3 |
| Blade Length |
18.50″ |
| Blade Tip Speed |
18,900 |
| Spindles |
Aluminum with 1″ shaft and sealed ball bearings |
| Deck Engagement |
Electric PTO Clutch |
| Deck Material |
Fabricated 10 gauge |
| Spindle Mounts |
Reinforced 11 gauge |
| Impact Trim Area |
11 gauge formed channel with rolled edge |
Construction
|
| Frame |
1.5″ X 3″ steel tubing |
| Front Axle |
Fabricated with sealed ball bearings |
| Front Caster Wheel |
Tapered roller bearings – grease-able |
| Front Caster Fork |
Fabricated 3/8″ steel |
General
|
| Seat |
Extra High-Back Suspension Seat |
| Cup Holder |
Yes |
Dimensions
|
| Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) |
23 x 11-10 BigBite™ |
| Weight (lbs) |
925 |
| Height (Inches) |
48.9, 68.7 w/ rops up |
| Length (Inches) |
76.7 |
| Width w/ Chute Up (Inches) |
55 |
| Tire-to-Tire Width (Inches) |
51.5 |
| Productivity (Acres Per Hour) |
4.36 |
Warranty
|
| Warranty |
4 years or 1000 hours |
Dimensions with Catcher
|
| Catcher Style |
2-bag |
| Powered / Non-powered |
Powered |
| Catcher Capacity |
7.2 bushel |
| Mower Length w/ Catcher |
98″ |
| Mower Width w/ Catcher |
63″ |
| Catcher Style 2 |
Bac-Vac |
| Powered / Non-powered |
Powered |
| Catcher Capacity |
8 bushel |
| Mower Length w/ Catcher |
88.75″ |
| Mower Width w/ Catcher |
63″ |
If you have any questions about the Hustler FasTrak SDX 54-inch commercial zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
