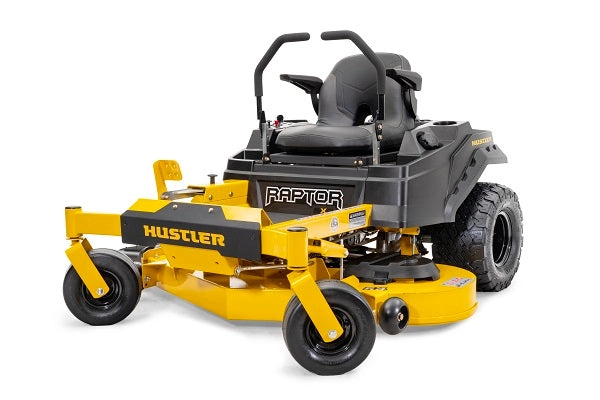

A High-Performance Zero-Turn at a Great Value
The legendary Hustler Raptor X 54-inch riding mower packs all the performance and reliability Hustler is known for into a simple and durable design. Hustler engineers their mowers to be maintenance and service friendly for the everyday homeowner. From the frame to the deck, the Hustler Raptor X 54″ delivers a professional-grade cut quality for a perfectly manicured lawn. Hustler has put thousands of hours of R&D and testing into the Raptor Series, which is why it’s backed by an industry-leading 3yr / 300hr warranty.
- Welded Steel Deck: 11 ga. welded fabricated steel deck adds durability & extends the mower’s life. (compare to other brand’s cheap stamped decks)
- Wider Stance: Additional operator platform width provides more room and comfort for the operator
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs.
- Premium Seat: Provides a comfortable ride with armrests and added airflow to the back.
- Rubber Floor Mat: Adds comfort by reducing vibration on the operator’s feet and is standard on all Raptor models.
- Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
- Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” – 4.5” with less effort than hand-operated levers found on other brands.
- Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
- Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
- Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.
Hustler Turf Accessory Compatibility Chart
|
Hustler Raptor X Accessories
|
| 2 Bag Catcher |
940817 |
| Mulching Kit 54″ |
126537 |
| Flex Forks Kit |
608242 |
| USB Kit |
127702 |
| Light Kit |
127057 |
| Stripe Kit 54″ |
126828 |
| Hitch Kit |
127156 |
| Steering Lever Extension Kit |
122760 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Kawasaki FR651 |
| Engine Horsepower |
21.5 |
| Displacement |
726cc |
| Cooling |
Air Cooled |
| Engine Warranty |
3 year |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Hydro-Gear ZT2200 |
| Fuel Capacity |
3 gal. |
| Ground Speed (Fwd) |
Up to 7 mph |
| Parking Brake |
Integrated with steering levers |
Deck
|
| Cutting Width |
54″ |
| Cutting Height |
1.5″ to 4.5″ |
| Deck Depth |
4.5″ |
| Deck Lift |
Foot Operated |
| Number of Blades |
3 |
| Blade Length |
18.50″ |
| Blade Tip Speed |
18,600 |
| Spindles |
Aluminum w/ 1″ shaft and double lip sealed ball bearings |
| Deck Engagement |
Ogura GT1.5 |
| Deck Material |
Fabricated 11 gauge steel |
| Spindle Mounts |
Reinforced 7 gauge steel |
| Impact Trim Area |
1/4″ x 1″ steel bar |
Construction
|
| Frame |
1.50″ X 3″ steel tubing |
| Front Axle |
Fabricated with sealed ball bearings |
| Front Caster Wheel |
Sealed ball bearings |
| Front Caster Fork |
Fabricated 1/4″ steel |
General
|
| Seat |
Premium bolstered mid-back seat with armrests and built-in lumbar support |
| Cup Holder |
Yes |
Dimensions
|
| Front Tire (Inches) |
11 X 6 |
| Drive Tire (Inches) |
18 X 10.5-8 BigBite™ |
| Weight (lbs) |
564 |
| Height (Inches) |
40.8 |
| Length (Inches) |
70.6 |
| Width w/ Chute Up (Inches) |
58.6 |
| Tire-to-Tire Width (Inches) |
46.5 |
| Productivity (Acres Per Hour) |
3.05 |
Warranty
|
| Warranty |
3 Year/300-hour residential |
Dimensions with Catcher
|
| Catcher Style |
2-bag |
| Powered / Non-powered |
Non-powered |
| Catcher Capacity |
5.4 bushel |
| Mower Length w/ Catcher |
91.4 |
| Mower Width w/ Catcher |
69.5 |
If you have any questions about the Hustler Raptor X 54-inch riding mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
