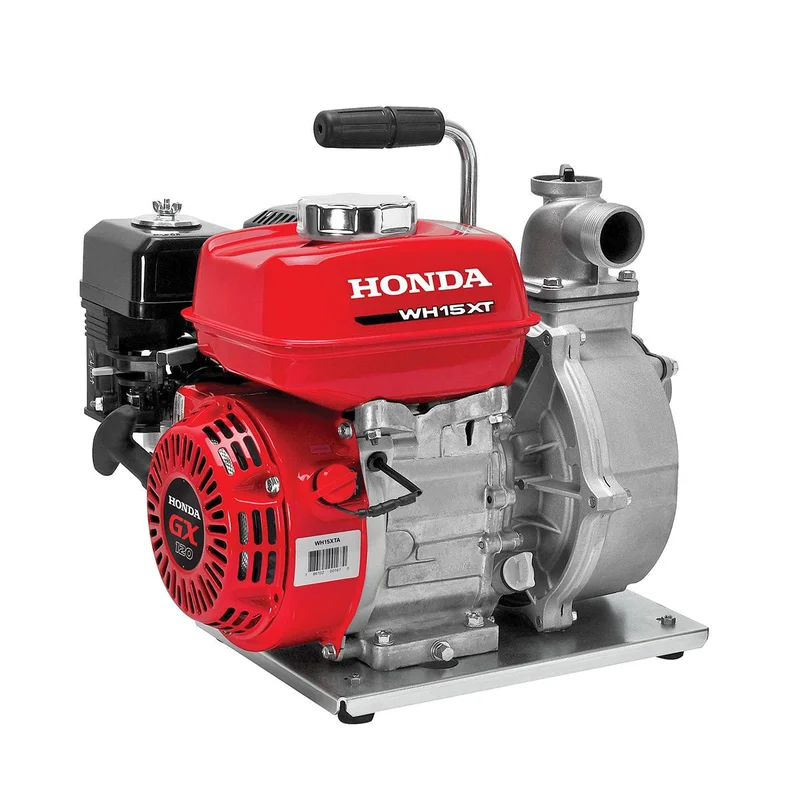

WH15

Description

Product Highlights

1 1/2″ high pressure water pump

• 98 gal./min. capacity
• 57 psi max.
• Cast iron volute and impeller

Features

High pressure – ideal for sprinklers or nozzles

With a maximum pressure of 57 psi, the WH15 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engine

The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

98 gal./min. capacityCast iron volute and impeller

The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Easy carry handle

The WH15 is easy to transport wherever you need it.

Lightweight aluminum case

Specifications

Engine: GX120Displacement: 118ccBore and stroke: 2.4″ x 1.7″Compression Ratio: 8.5:1Oil Alert: N/APump Type: High Pressure, Centrifugal, Self-primingVolute: Rigid Mounted Cast IronImpeller: Cast IronMechanical Seal (Pump case / impeller): Carbon/CeramicPriming time: 80 sec. at 16.4 system: DirectDischarge capacity: 98 gals./ port diameter: 1.5″ NPTDischarge port diameter: 1.5″ NPTTotal head lift: 131 head lift: 26 pressure: 57 psiSolids handling: N/ADimensions (LxWxH):16.3″ x 14.2″ x 16.3″Dry weight: 49 Capacity: 0.53 galRun Time @ Max Discharge: 1.5 hrStrainer Part #78325-YB7-020Residential Warranty: 24 monthsCommercial Warranty: 12 monthsWARNING: California Prop 65 Information
